Project Description

  • steel column, steel structure construction
  • beam & girder, steel structure system

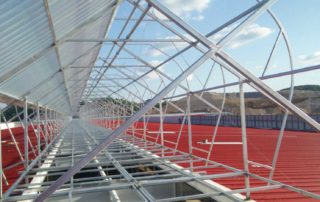

  • ventilation system
  • enclosure system, color coated steel sheet

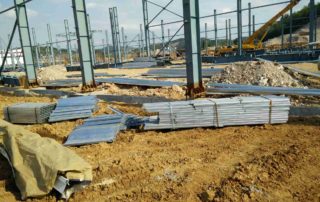

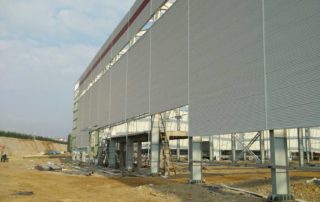

Wan Ren Automobile Group press & welding workshop project, the dimension is 191.52 * 239.52m, steel structure, formed by steel beam, steel column, purlins, single color coated galvanized steel sheet, duration 60 days. Good component processing quality and excellent management of the site, won the customer and the local government’s praise.

  1. Nationality: China
  2. Location: Guizhou
  3. Usage: Workshop, press & welding room
  4. Dimension: 192*240*11.5m



Advantages of light steel structure:

1) Cost saving and transportation convenient, custom design available
2) The main beam and column are made of quality steel
3) Steel structure makes the house resist heavy wind of 140km/h and 8-grade earthquake
4) Easy assembly and disassembly several times without damage
5) Widely used in construction site, office building, dormitory etc.
6) Environmental friendly. Steel structure housing construction greatly reduces sand, stone and dosage of the ash. Most of the used materials are recyclable or degradable, little rubbish produced

Project scope:

Industrial steel structure warehouse/Steel workshop/hangar/garage/chicken shed, container house, prefabricated home, shed, exhibition hall, office buildings, garage, multi-story building, agricultural storage, logistic centers and all kinds of steel materials, sandwich panel, welded H steel, C/Z channel, corrugated steel sheet, preprinted steel sheet, etc.
Products & Service Scope:
Design& Engineering service, steel building, space frames, portable cabins, tubular steel structures, basic building elements (built-up welded H-section, hot-rolled H-section, channel, steel column, steel beam), standard frames, secondary framing, roof & wall materials, tempcon (sandwich) panels

Drawings & Quotation:

1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather.

Engineering Design Software:

AutoCAD, PKPM, MTS, 3D3S, Tarch,Tekla Structures(Xsteel)V12.0.etc

) Main Steel: Q195, Q215, Q235, Q255, Q275, Q345, Q235, etc.
2) Column & Beam: Welded or Hot rolled H-section
3) Connection method of steel structure: welding connection or bolt connection
4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet
5) Door: Rolled up door or Sliding door, PVC or Aluminium, Wood
6) Window: Plastic steel or Aluminum alloy window
7) Surface: Hot dip galvanized or painted. (More RAL color as per request)
8) Crane: 5MT, 10MT, 15MT, etc.
