Project Description

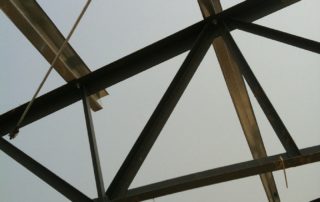

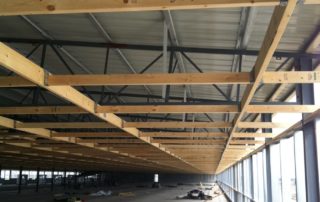

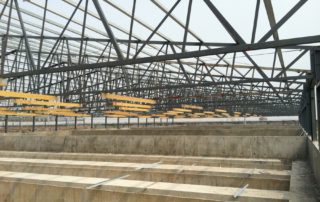

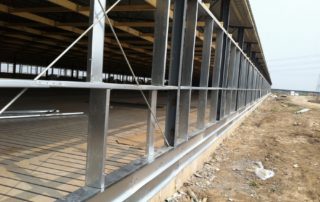

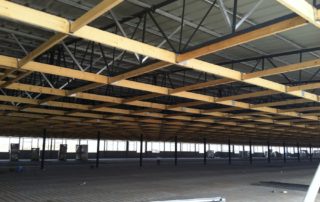

Steel structure project is third generation construction, it adopts H type steel, C type steel and Z type steel to combine or build framework, roof and wall are color steel compressing corrugated steel or color steel sandwich panel, steel structure building has basically substituted traditional reinforced concrete in developed country.
1) It has many excellent characteristics like light weight,large span,and structural stability.
2) Also use few materials,and can be used several times that is can be recycling,so it’s low cost and economy.
3) Besides,it has a long life-span up to 50 years for use.At the same time,due to the materials it uses,the wall and roof structures take full account of the heat insulation, moisture-proof effect, which saving a lot of energies.
4) What’s more,it used widely,such as mono layer workshop, storage, business architecture, office block, several park and family house etc.
5) One point more worth noting is that all of the steel frame components may be galvanized to address customers’ demands; roof and wall finished can be more a variety of colors, shapes, and other options, and thus greatly improve the aesthetic appearance of the design, sufficient to meet the customers’ requests.

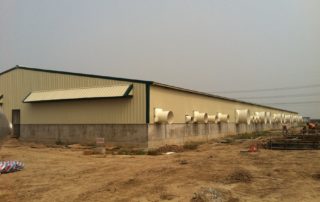

  1. Nationality:       China
  2. Location:            Zaoqiang County

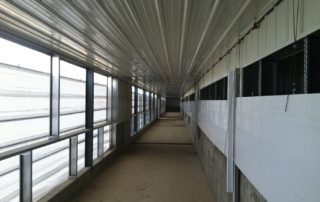

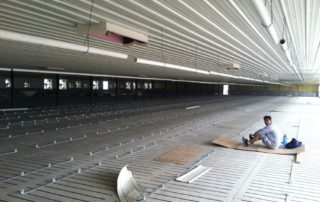

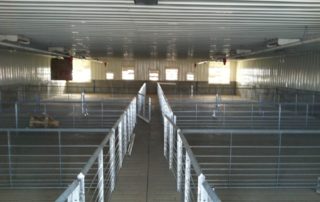

  3. Usage:                 pig house/hog house/ hog ring/pig farm/pig breeding house
  4. Dimension:        20m*50m*3m(eave height) -3.5m(ridge height)*20(number of house)

1. Main feed line system:
1).The function of deliver system is to transmit the feed outside shed to the hopper of feeding system inside, control
system indicates delivery system to work automatically.
2).Feed of poultry raising farm is stored in the silo, so as to save large amount of package, and also to ensure the health
of feed. Different specifications of silos are alternative to choose according to the daily consumption and the size of silo.
Material of silo consist of galvanized sheet and glass fiber reinforced plastic.
3).If you don’t use silo, you can use manpower hopper.Usually, if you just build one or two farm,we suggest you to use
hopper instead of silo.
4).This main feed line system including:
a. silo or manpower hopper;
b. driving motor(power-0.75kw/1.1kw for your option, voltage-380v/220v, three-phase/single-phase);
c. feed conveying pipe(diameter-75mm, material-PVC;
d. auger(imported from South Africa, maximum feeding capacity-1400Kg/h);
e. sensor(imported from Germany).

2. Automatic pan feeding system.
1).There is a feed sensor at the end of each feeding line which controls motor on and off to achieve feed delivery
automatically.
2).Feed pan is the core of feeding system. The feed sensor is usually installed at one feed pan of the feeding line.
The motor will start working and delivery feed when the feed sensor doesn’t touch feed, the motor will stop
working when sensor touchs feed.
3)This automatic pan feeding system mainly including:
a. driving motor(power-0.75kw/1.1kw/1.5kw for your option, voltage-380v/220v, three-phase/single-phase);
b. v-shape bin(with hopper);
c. feed delivery pipe with feed pans(diameter-45mm, material-hot-galvanized steel pipe,feeding line specification
-4 feed pans/3m or 3 feed pans/3m);
d. auger(imported from South Africa, feeding capacity-400kg/h);
e. sensor(imported from Germany);
f. suspension&lifting system;
e. anti-perching system.

3. Automatic nipple drinking system.
The system provides flesh and clean water for birds,which is very vital to let the birds have a good growing
performance. Meanwhile, nipple drinking system can make the poultry house environment better. The system
has been become the necessary equipment for stander poultry feeding.
This automatic nipple drinking system including:
a. waterline front system(pressure regulating valve, filter, water meter, doser);
b. water pipe with nipple drinkers and drip cups;
c. suspension&lifting system;
e. electric shock system.

4. Ventilation system.
1).The system controls climate condition, can provide fresh air, proper humidity and temperature for birds,
ensuring your chickens provide maximum production.
2).This system including ventilation fan(box fan or butterfly cone fan) and air inlets.
3).If your chicken house is open, there is no need to use 36” fan and air inlets, however, you might need
curtain system.
Box fan parameters:Specifications 36” box fan 50” box fan
Flow amount 20800 m³/h 43070m³/h
Size(L*W*H)(mm) 1000*1000*450mm 1380*1380*450mm
Noise level ≤64DB ≤65DB
Power 0.4kw 1.1kw
Voltage 380V/220V/others 380V/220V/others
Current 1.6A 2.8A
Weight 66kg
88kg

1) Main Steel: Q195, Q215, Q235, Q255, Q275, Q345, Q235, etc.

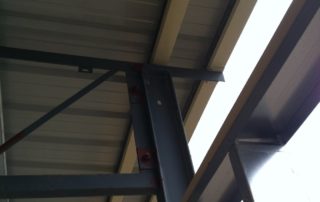

2) Column & Beam: Welded or Hot rolled H-section
3) Connection method of steel structure: welding connection or bolt connection

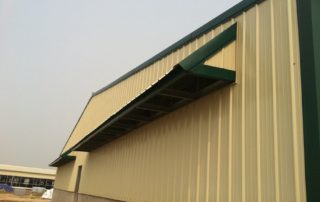

4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet
5) Door: Rolled up door or Sliding door, PVC or Aluminium, Wood
6) Window: Plastic steel or Aluminum alloy window
7) Surface: Hot dip galvanized or painted. (More RAL color as per request)
8) Crane: 5MT, 10MT, 15MT, etc.
